Underground Wine Cellars in Ann Arbor, MI | Below-Grade Builds for Washtenaw Clay
Building below grade in Washtenaw County means building against clay. The dominant soil profiles here, the Washtenaw Series and the Miami-Morley Series, are fine-loamy soils with low permeability and high water retention, which means a subterranean cellar sits under continuous hydrostatic pressure rather than occasional wetting. Ann Arbor Wine Cellars treats water management as the first phase of an underground build, not a contingency. Perimeter drainage, dual sump pumps with battery backup and a vapour-proof elastomeric coating on the structural walls all go in before a single stud is set.

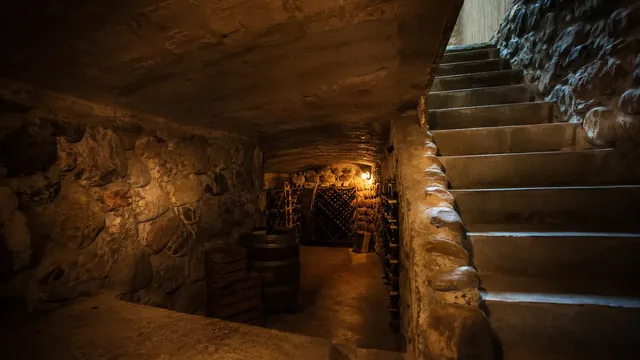

Underground Wine Cellars Ann Arbor MI
The advantage of going underground is real: soil temperature is far more stable than air temperature, so the cooling system does less work and the room rides through a power cut for longer. The price of that advantage is that you are permanently in contact with wet ground.
- Perimeter interior drainage installed before any framing
- Two sump pumps rather than one, with battery backup on at least one
- Elastomeric vapour-proof coating applied directly to structural walls
- Stud-off framing so wood never touches the below-grade masonry
Low-permeability clay does not drain, it holds. After a spring thaw or a heavy storm, water sits against the foundation wall and pushes. That pressure finds any path it can, and a cellar wall assembly built tight to damp masonry will trap that moisture inside the structure where it causes rot in the framing rather than a visible leak you could react to.
The usual approach
Framing built tight against a below-grade wall, insulated, and closed up, with the moisture problem sealed inside the assembly where nobody will see it until the studs are gone.
How we do it
Drainage and an elastomeric coating first, then framing held off the masonry, so any water that does arrive has somewhere to go that is not your wall cavity.
Below-grade specification
- Soil profile
- Fine-loamy, low permeability
- Drainage
- Interior perimeter French drain
- Pumps
- Dual, battery backed
- Framing
- Held off masonry, minimum 2 in
What actually matters in an underground cellar
An underground cellar is the most thermally stable room you can build and the most vulnerable to water. Nearly every problem we are called to fix below grade traces back to water management that was treated as optional.
- Hydrostatic pressure in clay is continuous rather than seasonal, so a drainage system that only handles storm events will be overwhelmed during a long wet spring.
- A single sump pump is a single point of failure sitting under your entire collection. Two pumps at different switch heights, with battery backup, is the standard we build to below grade.
- Wood in contact with below-grade masonry will eventually take on moisture regardless of what is painted on it, which is why stud-off framing rather than furring strips is the correct assembly.
- The stable soil temperature that makes below-grade cellars efficient also means the room recovers slowly if it does get warm, so equipment reliability matters more here than anywhere else.
Underground cellar pricing depends heavily on what the water situation turns out to be. A dry, well-drained basement with an existing functional sump is a straightforward build. A site with a persistently high water table can add a substantial drainage and waterproofing phase before cellar work even begins.
The offsetting saving is mechanical. Because soil temperature is stable, an underground cellar frequently needs less cooling capacity than an equivalent above-grade room, and it holds temperature far longer during an outage.
Before we build below grade
Underground work starts with finding out what your foundation is actually doing, which usually means looking at it during or shortly after wet weather.
- Let us see the space after heavy rain or during the spring thaw if at all possible. A dry basement in August tells us very little about a Washtenaw clay site in April.
- Locate your existing sump, if there is one, and find out where it discharges. Discharge lines that dump too close to the foundation simply recirculate the same water back into the soil you are trying to keep dry.
- Check the ceiling above the proposed cellar for plumbing. A supply line or waste stack running above a below-grade cellar is a leak risk directly over the collection and is worth rerouting while the ceiling is open.
- Have your radon situation confirmed if you have never tested. Sealing a below-grade room changes air movement in a basement, and any mitigation system needs to be coordinated with the cellar envelope rather than bolted on afterwards.
Below-grade work in Michigan has code implications.
Our permits and codes guide covers what the 2021 Michigan Residential Code and Washtenaw County inspections expect from a below-grade build.
How your underground wine cellars project works
Water assessment
We inspect the foundation, check the existing drainage and discharge, and identify where water is arriving before designing anything for the underground cellar.
Drainage and coating
Perimeter drainage, dual sump pumps and elastomeric wall coating are installed and tested as a complete system.
Stud-off envelope
Framing is set clear of the masonry, spray foamed and vapour controlled, so the underground cellar wall assembly never touches damp structure.
Fit out and monitor
Racking, cooling and lighting are installed, then we log temperature and humidity through a full weather cycle before handover.
Underground Wine Cellars questions we get asked
Is my basement too damp for a wine cellar?
Damp is a solvable problem, but it has to be solved before the cellar is built rather than after. We look for standing water, efflorescence on the masonry, a musty smell and any staining at the base of the walls.
If the moisture source is groundwater rather than interior condensation, the fix is drainage and a coating on the structural wall, and that work happens first.
Do I need a dehumidifier in an underground cellar?
Sometimes, but less often than people expect, because we are targeting 60 percent relative humidity rather than the low humidity you would want in a general basement.
A below-grade room that runs consistently above 70 percent does need active control, since that is where mould growth on porous surfaces becomes a genuine risk.
Do I need to be present while you build my underground cellar?
No. Below-grade work is the least disruptive kind we do, since the crew can usually work from an exterior basement entrance without going through your living space.
We do need reliable access to the sump discharge and to your electrical panel during the drainage phase.
Do you offer free quotes for underground wine cellars?
Yes, though for below-grade work we are honest that the quote may include a provisional allowance for drainage until we have seen the space in wet conditions.
Call 734-415-4984 and we will arrange a visit, ideally after rain.
Will an underground cellar stay cold if the power goes out?
Longer than any other type, yes. The surrounding soil acts as a large thermal reservoir, and a well-insulated below-grade room typically drifts only a few degrees over a day without power.
The greater risk during an outage is the sump, which is exactly why we specify battery backup on it rather than on the cooling.
Can you excavate a new underground cellar under an existing house?
That is a structural underpinning project rather than a cellar project, and it needs a licensed structural engineer and a permit before anyone touches the soil.
Far more often we build within an existing basement footprint, which achieves the same thermal benefit without the structural risk and cost.
What goes wrong, and what we do instead
Below grade in Washtenaw clay, every problem we are called to trace back to water management treated as optional.
| The mistake | What it causes | What we do instead |
|---|---|---|
| Framing built tight to below-grade masonry | Moisture trapped inside the assembly, rotting studs invisibly for years | Stud-off framing held a minimum of two inches clear of the wall |
| A single sump pump | One point of failure sitting directly under the collection | Two pumps at staggered switch heights with battery backup on at least one |
| Drainage sized for storm events only | A system overwhelmed through a long wet Michigan spring | Perimeter drainage designed for continuous hydrostatic pressure, not occasional wetting |
Build below grade without building in a water problem
We will assess the drainage first and tell you honestly what the foundation needs before any cellar work starts.
